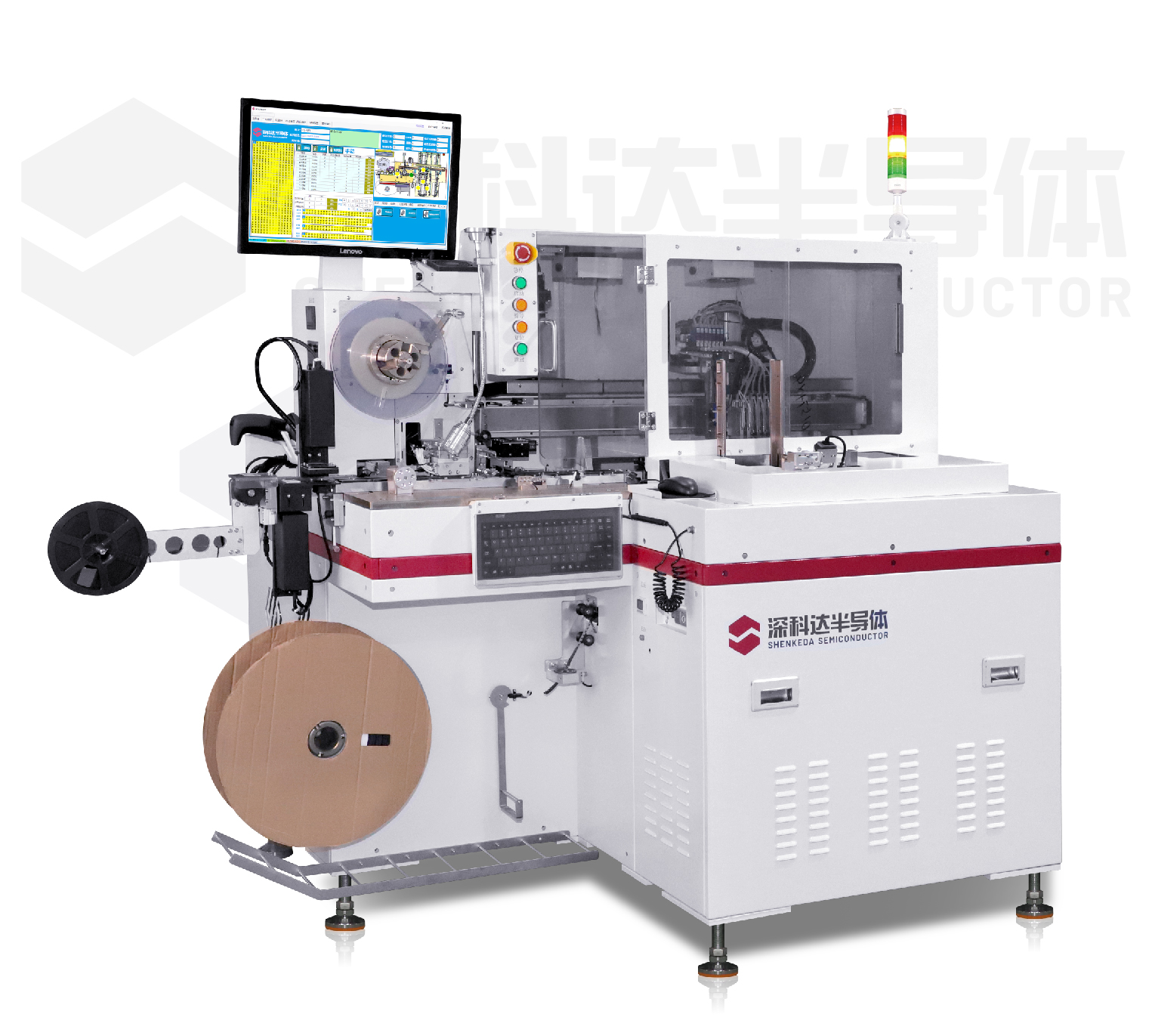

SKD610 is a tray-to-reel converter with AOI inspection, featuring tray feeding and automatic variable-pitch nozzle pickup for taping. It includes a multi-station imaging system to ensure high yield in taping. It can accommodate various package sizes such as DFN, QFN, LGA, CSP, SOP, MSOP, TSSOP (3x3 to 15x15 mm).

Mark Inspection Vision (two-dimensional mark inspection) can recognize, duplicate code imprinting, imprinting strokes broken and extra strokes, imprints beyond the plastic seal.

The product direction judgment station can judge the materia’ s direction, lead deformation, character recognition, suction nozzle empty material.

In Pocket Vision  can inspect plastic seal body breakage, contamination, cracks and other bad products (visible to the naked eye).

Visual inspection of the carrier’ s bottom  to inspect the damage, depression and bad creases at the bottom of the carrier.
Product transfer: 4-station variable distance fetching manipulator.

Taping: It is adopted with open carrier track , which can meet the carrier’S taping function of different specifications.
