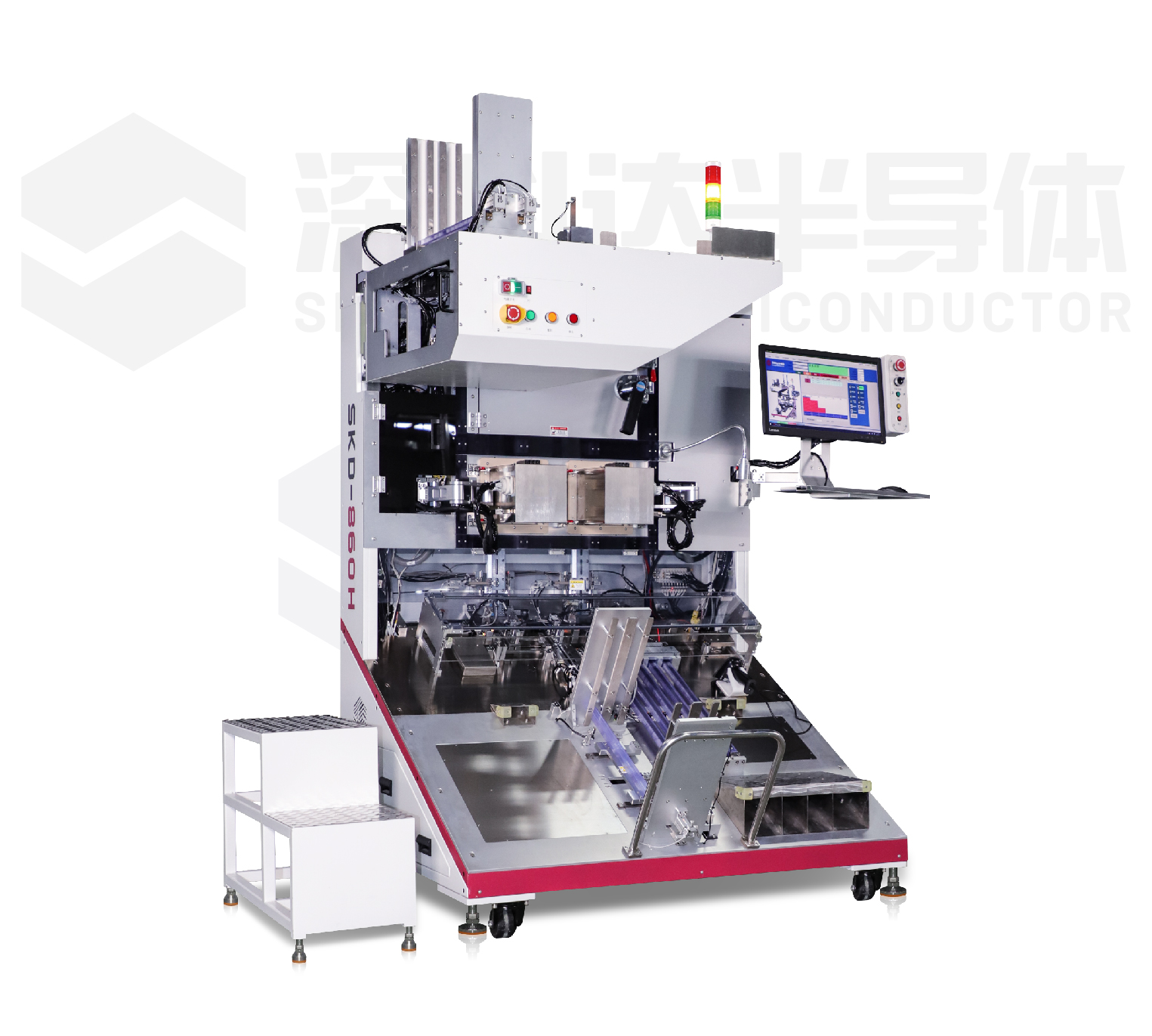

SKD860H test handler is a fully automatic sorting machine designed for IPM DIP series product package testing. The separator is equipped with multiple test stations in parallel with high temperature, which integrates high temperature heating, high temperature testing, product flipping, automatic BIN separation and function.
● With DBC high temperature test mode nitrogen protection function;
● Preheating device: the use of air heater heating, heating temperature ≤ 175°, high efficiency double track preheating mechanism (accuracy ±3℃), with rapid cooling performance;
● High temperature test component: 2 stations high temperature test, heating temperature ≤ 175°, the test station is equipped with a separate device to improve the heating efficiency (accuracy ±3 ° C);
● Cooling device: the feeding track has the air cooling function;
● Turning station: the product test is completed with the turning function to ensure the direction of the product into the pipe;
● Parting position: driven by servo motor and designed by double parting shuttle mechanism, the mechanism is light, stable, accurate, fast and efficient;
● Feeding mode: 1 automatic material tube receiving mechanism, 5 NG manual tube mechanism, effectively distinguish good products from bad products (automatic tube slot can put 18 material tubes);
● PLC control system, friendly man-machine interface, the interface can display real-time production of each material tube product quantity, UPH, fault location, cause, treatment methods and other functions.
Contact Information：+86 13537507730
Scan to add WeChat

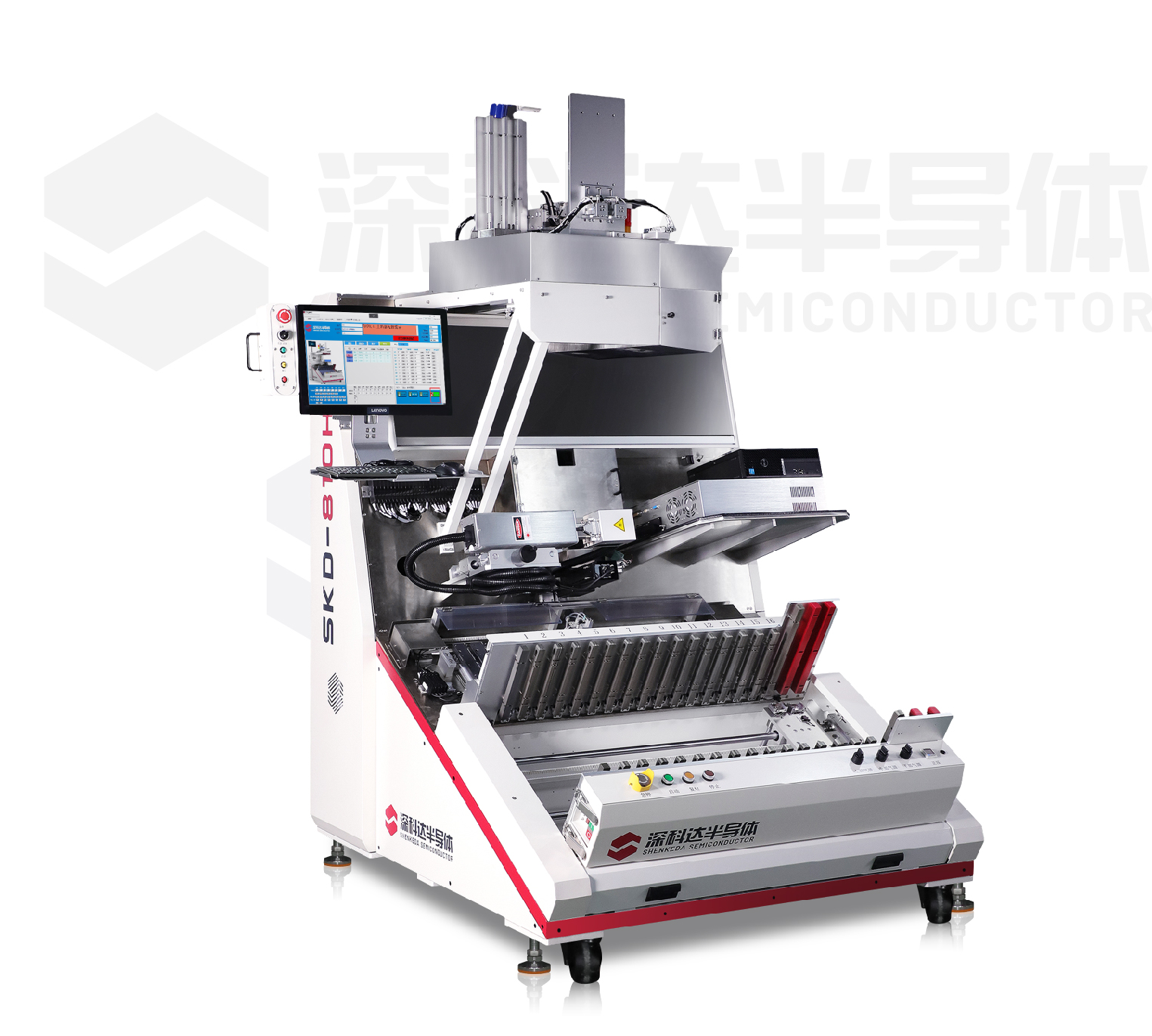

SKD811H gravity test Handler is a fully automatic that is designed for the testing of TO series packaging power devices.It has series connection of many test stations, which integrates insulation testing, conventional electrical performance testing, laser marking, brush dedusting, visual inspection and other functions.
● Loading: automatic double-tube in, automatic tube replacement.
● Equipped with normal temperature and high-temperature testing workstation.
● Preheating device: heating temperature ≤ 175°, high efficiency preheating mechanism (accuracy ±3℃), with rapid cooling performance.
● High-temperature test components: 4 high temperature test stations, heating temperature ≤175°, test stations are equipped with insulation function(accuracy ±3℃).
● Material separater level: driven by sever motor,the sub-shuttle blocking cylinder adopts the way of lower air intake, the mechanism is light, the operation is more stable and accurate.
● Offload: automatic tube out, which can be setted to red and white pipe to distinguish between good and bad products effectively.
● PLC control system, friendly man-equipment interface, the interface can be real-time display in the production of each product in tubes quantity, UPH, fault location, causes, treatment methods and other functions.
● Optional: Marking station, 2D visual station.
Contact Information：+86 13537507730
Scan to add WeChat

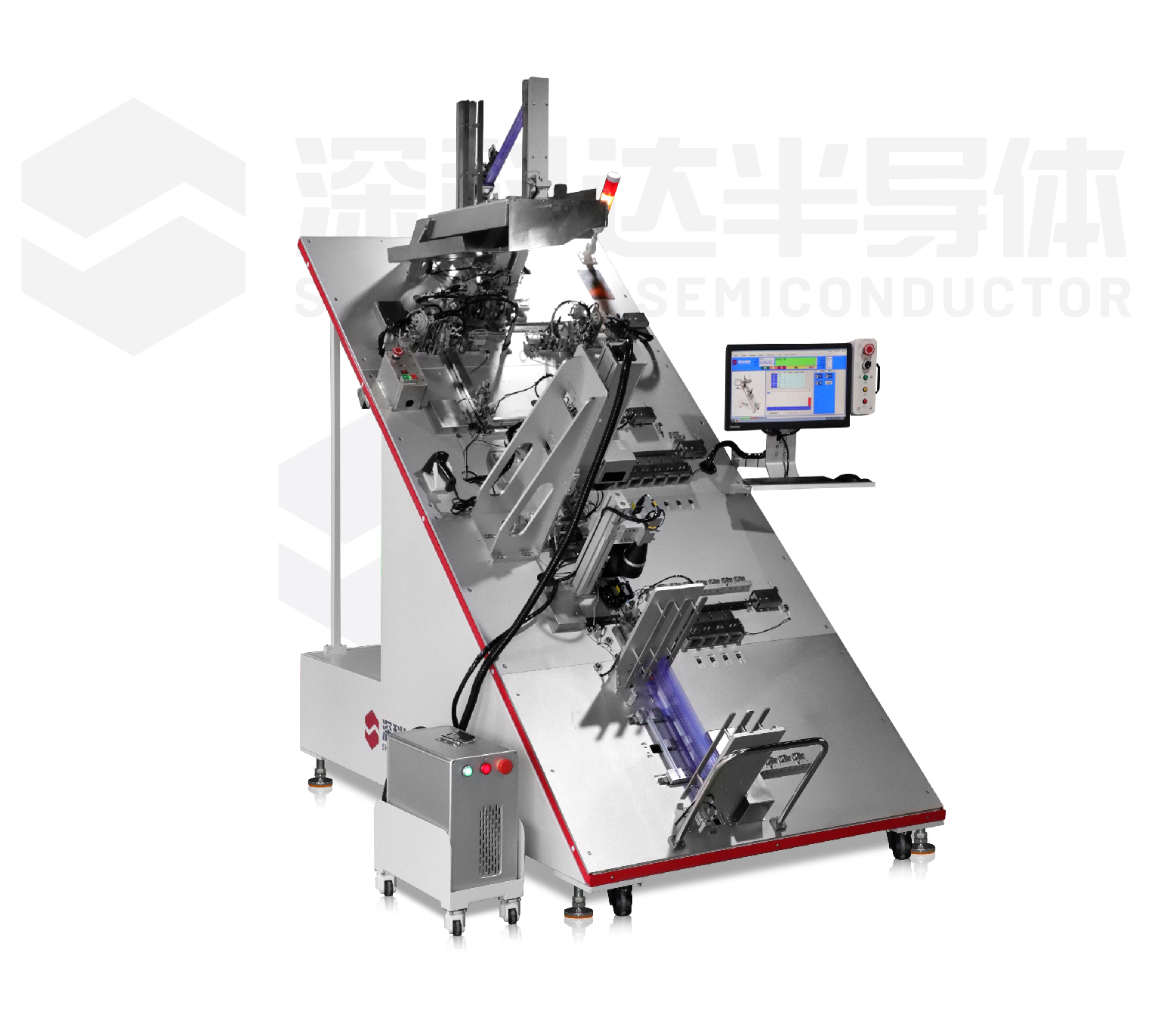

SKD831 gravity test handler: an automatic Handler designed for packaging and testing of IPM series products. The Handler adopts oblique back mode and integrates insulation test, electrical performance test, laser marking, brush dust removal and visual inspection.
● Feed mode: material tube stack and feed, automatically switch material tube.
● Test station:1 insulation test station(optional)+1 AC/DC test station.
● Marking station : optional.
● 3D visual station : optional.
● Sub-material level: it is driven by motor, the position of sub-material tube can be set by red and white tube, which can effectively distinguish good products from bad ones./span>
● Discharge mode: material tube stack and put in, automatically switch material tube.
● Modular structure design, a small number of parts can be replaced to complete the equipment restructure according to the requirements of product in the later stage.
● With the unique equipment transformation mechanism, the matching transformation of the equipment can be completed by replacing a small number of parts according to the requirements of the test products in the later stage；
● PLPLC control system, friendly man-equipment interface, the interface can be real-time display in the production of each pipe product quantity, UPH, fault location, causes, treatment methods and other functions.
