SKD831 Gravity Test Handler​

SKD831 gravity test handler: an automatic Handler designed for packaging and testing of IPM series products. The Handler adopts oblique back mode and integrates insulation test, electrical performance test, laser marking, brush dust removal and visual inspection.

● Feed mode: material tube stack and feed, automatically switch material tube.

● Test station:1 insulation test station(optional)+1 AC/DC test station.

● Marking station : optional.

● 3D visual station : optional.

● Sub-material level: it is driven by motor, the position of sub-material tube can be set by red and white tube, which can effectively distinguish good products from bad ones.

● Discharge mode: material tube stack and put in, automatically switch material tube.

● Modular structure design, a small number of parts can be replaced to complete the equipment restructure according to the requirements of product in the later stage.

● With the unique equipment transformation mechanism, the matching transformation of the equipment can be completed by replacing a small number of parts according to the requirements of the test products in the later stage；

● PLPLC control system, friendly man-equipment interface, the interface can be real-time display in the production of each pipe product quantity, UPH, fault location, causes, treatment methods and other functions.

​	​​​	​

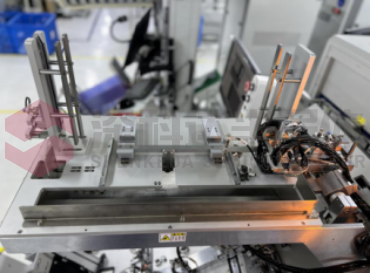

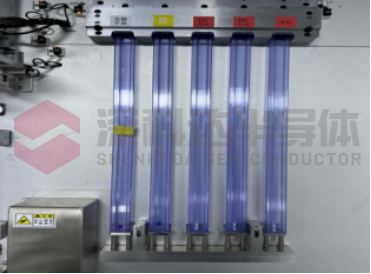

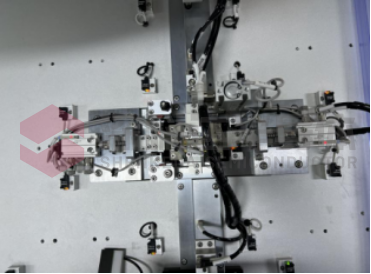

Both loading and unloading adopt the method of automatic switching material tube, which can be compatible with different sizes of material tube.	The modular structure of the test station can complete the replacement according to the s​ize change of the product to replace the corresponding accessories .​​	According to the production situation, the feeding tube can set the sequence by itself.​

Parameter Information

​
