SKD950 turret sorting machine is used for the taping of discrete devices and IC devices. It has high-speed testing and marking and taping capabilities. It uses Japanese imported DDR motors to ensure stable performance and high UPH output. Integrate marking system and imaging system to provide customers with high-quality taping output.

It can support 8 stations simultaneous testing, and upgrade the machine UPH for products with a long test time;

The suction nozzle has a shielding function and an automatic height correction function;

Automatic feeding (vibrating plate device): vibrating plate feeding, fast and stable feeding speed;

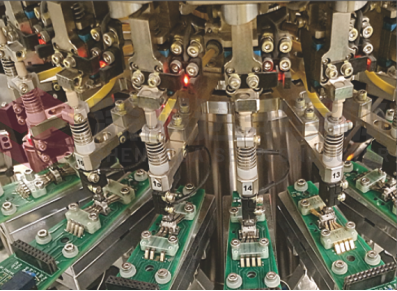

Main turntable: The main turntable is equipped with 20 suction nozzles driven by a servo motor, which can accurately deliver the product to the center of each station through the suction of the suction nozzle;

Guiding/steering device: precise positioning and reversing of the product, positioning error 0.005mm, direction accuracy of 0.1 degree;

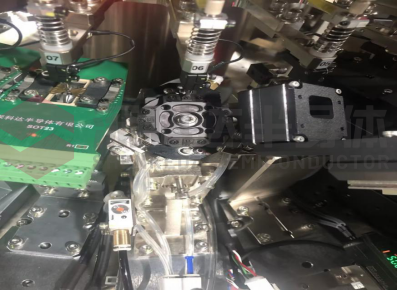

Marking plate mechanism: The marking plate can complete functions such as laser marking, dust collection, and marking visual inspection, which greatly accelerates the speed of marking;

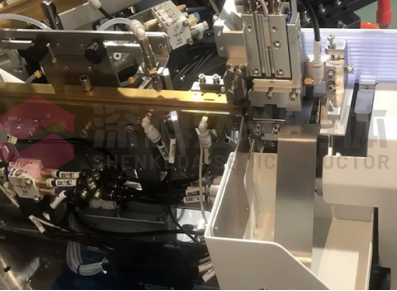

Taping component: In addition to simple automatic taping, it also has an automatic replenishment function; Image inspection function after sealing (optional).

Scan to add WeChat

Phone:+86 13537507553

Test sorting machine SKD950

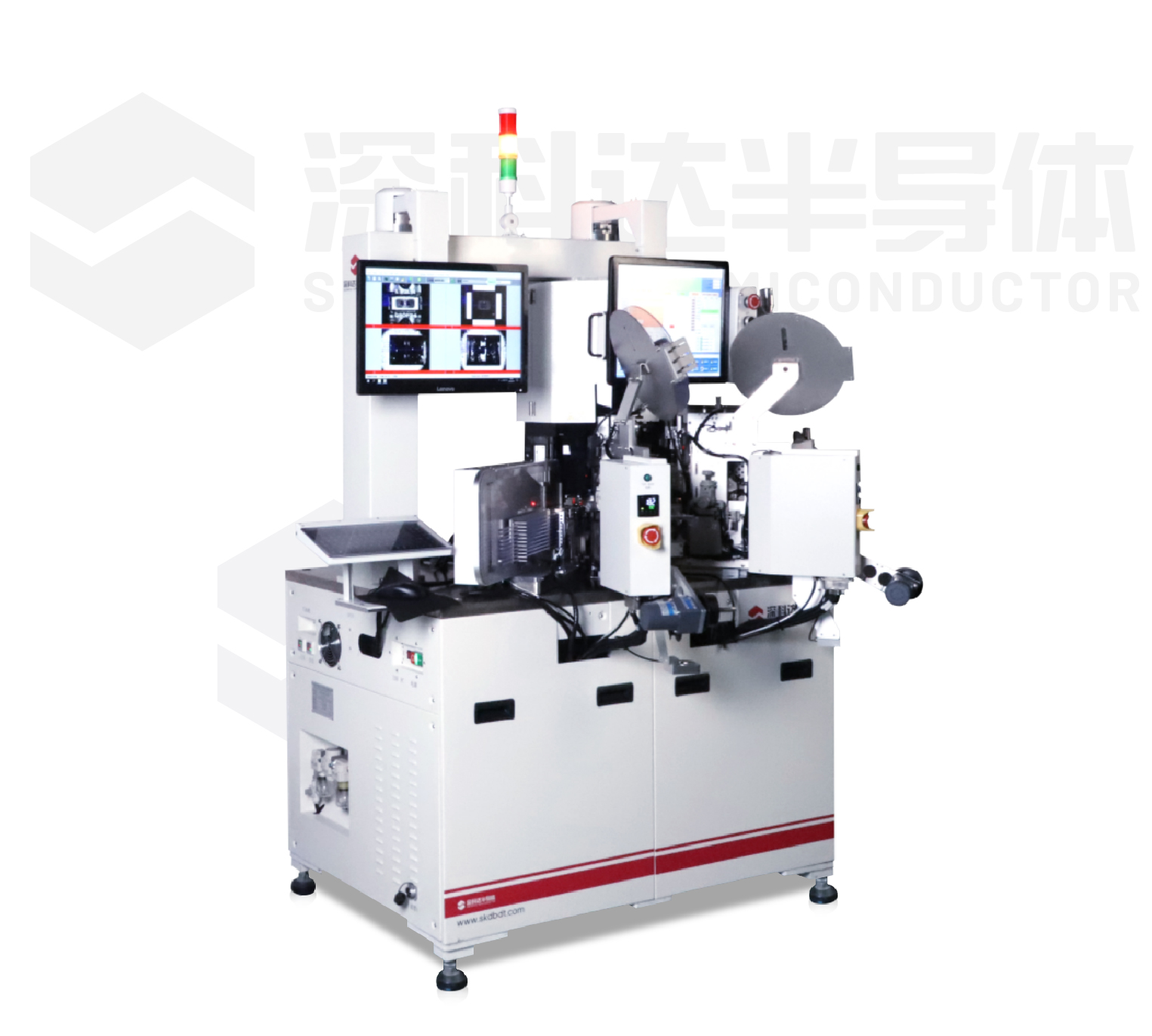

Dual monitors can be rotated 270°, both front and rear can be operated, the control is easier


Support eight stations test


The main rotor assembly uses upper and lower air discs to supply materials, which is simple in structure and easy to maintain

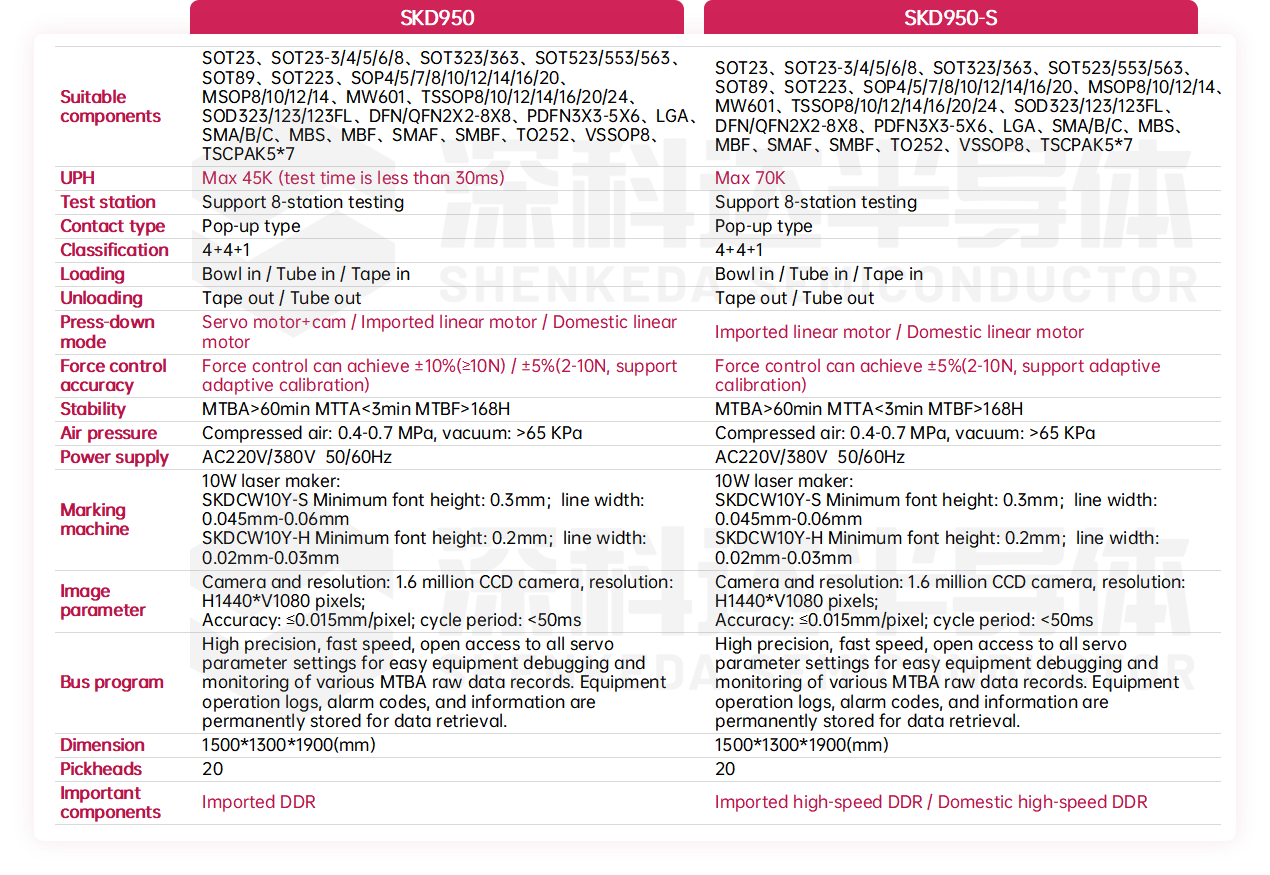

Technical parameters:
model SKD950
Suitable device SOT23/SOT23-5-6/SOP8/DFN2×2~DFN8×8/QFN2×2~QFN8×8
Maximum capacity 45,000 (test time less than 30ms) (psc/h)
Test station Support 8 stations test
Type of contact Shrapnel
Classification 4+4+1
Feed Vibrating plate
Discharge Taping/Barrel
Machine stability MTBA>60minutes MTTA<30sec MTBF>168Hours
Air pressure 0.4-0.7MPa
vacuum ≥65KPa
power supply AC220V 50/60Hz
Marking machine parameters 10W laser marking machine/20W pulse marking machine (optional); marking range: 110mm×110mm\70mm×70mm; engraving speed: ~7000mm/s; minimum character: 0.5\0.3; output power: 0-10W /20W optional
Image parameters Camera and resolution: 400,000 CCD camera (H640×V480 pixels) /1.6 million CCD camera (H1280×V1080 pixels) Precision: 0.012mm/pixel: Cycle time: <35ms
Bus program High precision, fast speed, open all servo parameter settings, convenient for equipment debugging and monitoring MTBA various raw data records, equipment operation logs, servo alarm codes and information and other data are permanently saved.
Station 20 seats
