SKD936 Turret Test Handler​

SKD936 turret test handler for more functional sorting needs, with 36 stations, flexible choice of feeding methods, support for a variety of ways of discharging, flexible with, to meet the needs of customers to have more workstation combinations; at the same time taking into account the requirements of the larger package size product testing and sorting (TO220/263/247, TO251, TOLL6R, LFPAK, PPAK8X8, XJ836, etc.).

● Mark inspection vision (2D mark inspection) recognizes and recodes marks, broken and redundant mark strokes, and marks that are outside of the plastic seal.

● 3D5S can detect product size and integrity; it can also detect pin length, standoff height, offsets, pin width and pin spacing.

● In pocket vision (in tape) detects defective products (defects visible to the naked eye) such as broken, contaminated and cracked plastic seals.

● Product transfer: main turret has 36 vacuum pickheads.

● Pickhead feature shielding and automatic height correction functions

● Can be connected to a variety of brands of tester, software independent property rights, the use of key switches, standard keyboard for operation and data input, with workstation interlock function.

● Product orientation rotation station: make positioning rotation direction according to material direction.

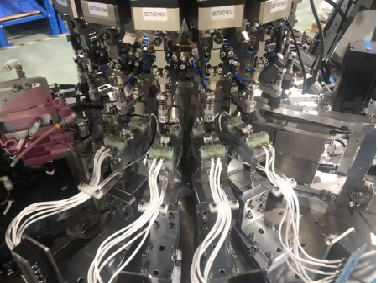

● Maximum of 12 elastic test stations(compression/clamping), ensuring high testing accuracy.

● Packaging: TO220, idle UPH ≥11k (no testing or testing and marking time ≤120ms).

​	​​​	​

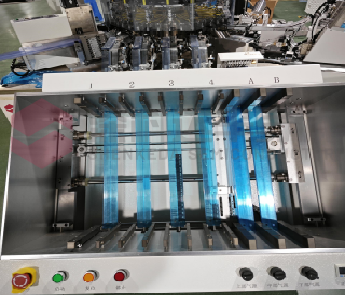

The sub-turret station adopts a large disk surface and multi-station method to improve marking​ efficiency and take into the large package products.	The test station has two options of pressure test and clamp test, taking into account the test requirements of different high-current and high-voltage products​.​	The option for 4-in-1 tube collection enables faster speed, higher efficiency, and increased sorting capacity.​

Parameter Information

​
