SKD936T Turret Test Handler​

SKD936T turret test handler for discrete devices, IC devices and other Tray tray in and out of the material, appearance detection, braid, with high-speed test marking braid capability, using high-precision DDR. Integration of marking system and imaging system to bring high quality product output to customers.

● Can support Tray to Reel, Bowl to Tray, Tray BIN and other feeding and unloading methods and BIN methods;

● Low Tray plate of transplanting: automatically in plate, positioning soft smooth, mobile location of high precision products;

● Low main wheel: the main wheel is equipped with servo motor drive the suction nozzle of 36, can you have your product to each station by adsorption of suction nozzle precise center;

● Low conductivity is/steering device: precision of product positioning and the reversing, positioning error is 0.005 mm, direction accuracy of 0.1 degrees;

●Low marking plate of institutions: marking plate can finish the laser marking, vacuuming, marking the function such as visual inspection, greatly accelerated the hit target speed;

● Low braid components: in addition to simple automatic braid, also added on the function of automatic filling material;

● Low sealing after imaging function (optional).

​	​​​	​

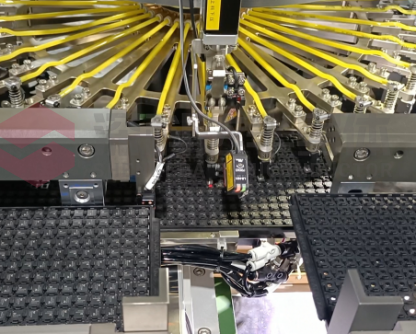

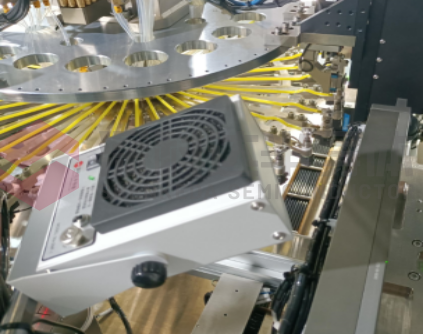

Tray tray adopts high precision screw and linear guide rail to drive, running smoothly and taking material smoothly	2 defective products BIN tray, support a variety of discharge methods, XY axis movement accuracy. Use dust-free drag​ chain to prevent dust generation​	Remove static electric fan, eliminate Tray tray and product static​

Parameter Information

​
