The SKD948H turret-type high-temperature test handler is designed for discrete products and IC products requiring high-temperature testing. On the basis of conventional turret architecture, it integrates high-temperature test capabilities and ensures stable performance. It is suitable for PDFN / DFN / MSOP / SOT / SOP / SOD / TO / SMA / B/C and other products for both room-temperature and high-temperature testing and sorting.
● Test Module: 1–4 test stations (optional), supporting both room-temperature and high-temperature testing up to 180°C (High-temperature test includes built-in thermal insulation design).
● Temperature Accuracy: Dual-layer heating plates; maximum heating temperature ≤ 180°C; Temperature control accuracy ±3°C. For example, with PDFN5*6, up to 96 devices can be preheated simultaneously.
● High-temperature Auxiliary Tower Mechanism: High-temperature testing is directly conducted on the high-temperature auxiliary tower to ensure precise temperature control. Meanwhile, anti-collision sensors are equipped at the inlet and outlet.
● Automatic Feeding (Vibration Bowl Feeder)The vibration bowl feeder enables fast and stable feeding.
● Main Turret Table: Driven by DDR motor, equipped with 48 pockets, enabling good expansion capability.
● Orientation / Alignment Module: Highly accurate alignment with positional accuracy of 0.005 mm, orientation precision up to 0.1°.
● Marking Module: Functions including laser marking, dust extraction and marking visual inspection can be completed on the marking turntable, which greatly accelerates the marking speed.
● Taping Module: Taping for good product, also equipped with an automatic material replenishment function.
 |

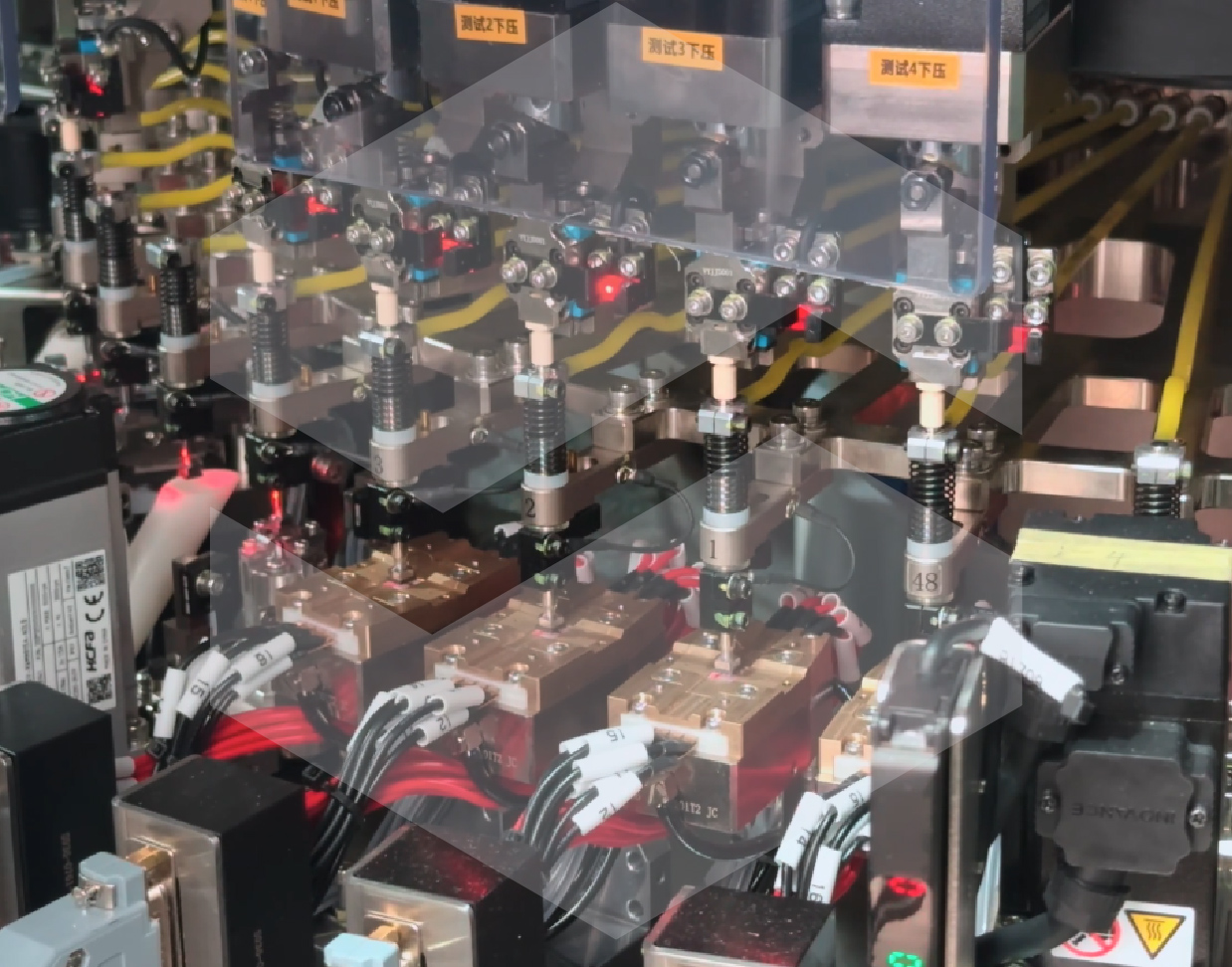

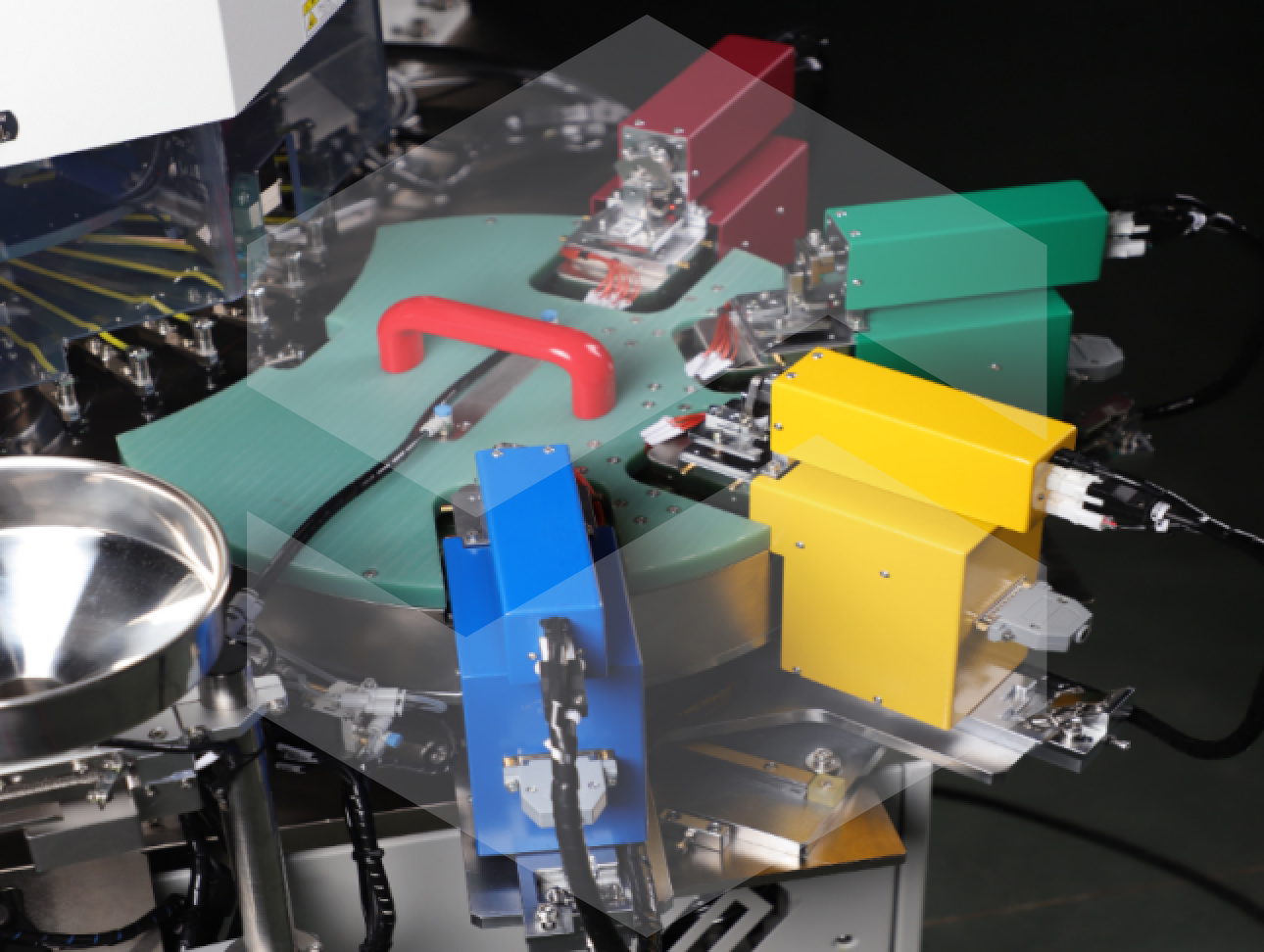

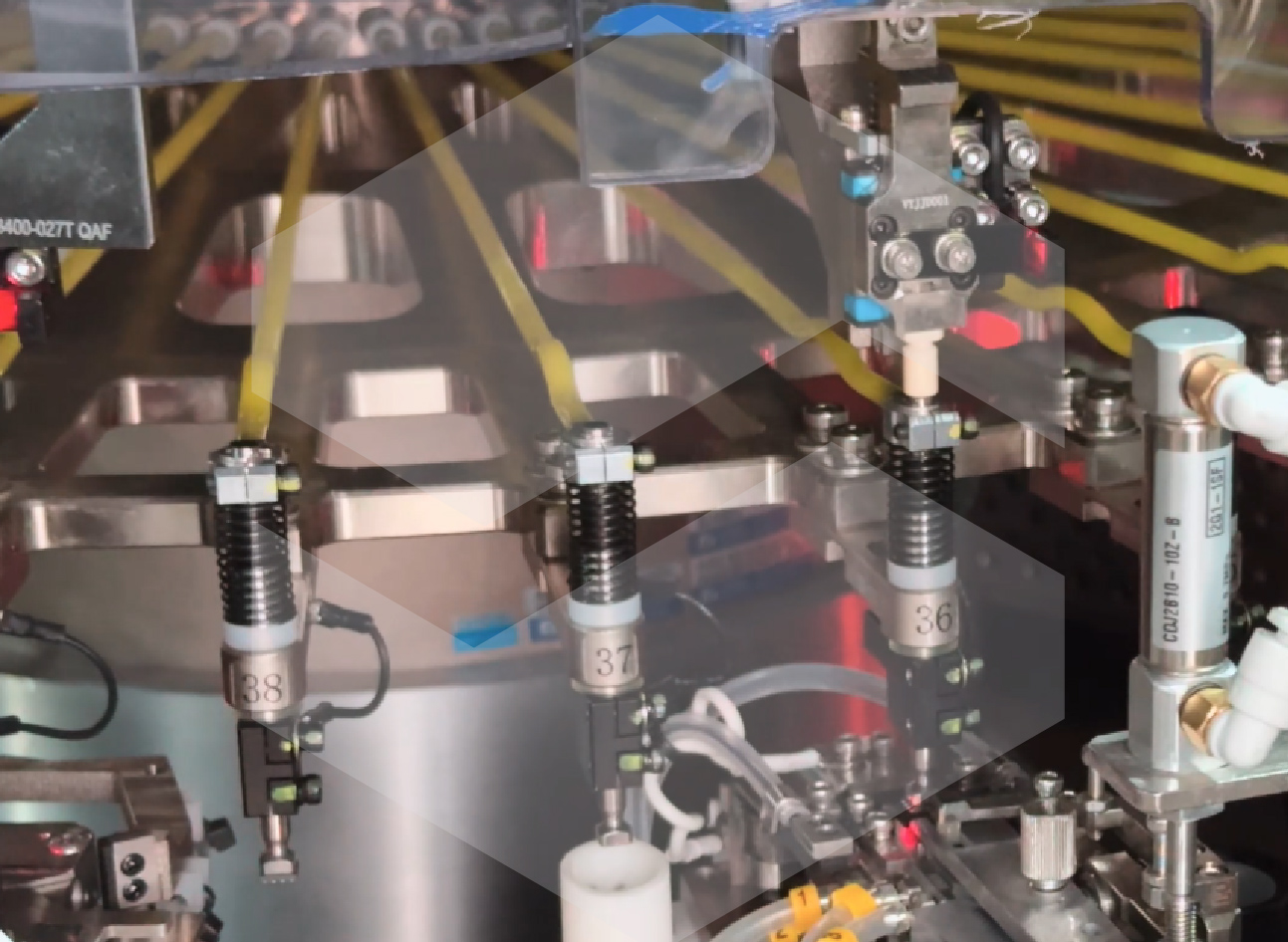

| |
| Main turret table driven by imported DDR motor, with 48 nozzles and strong expandability. | The sub-tower heating module is tested on the heating plate, with high temperature control precision and color-based error-proofing function. | The sub-tower heating module is tested on the heating plate, with high temperature control precision and color-based error-proofing function. |
Parameter Information
|
Applicable Packages |
PDFN /DFN / MSOP / SOT / SOP / SOD / TO / SMA/B/C etc. |
|
UPH |
Max 10,000 UPH (based on test time < 200 ms) |
|
High-Temperature Test Stations |
1–4 stations selectable; supports both room-temperature and high-temperature testing |
|
High-Temperature Test |
Test on Pre-heat plate |
|
High-Temperature Test Range |
30~180℃±3℃ |
|
Sorting Bins |
4+4+1 |
|
Input |
Vibration bowl / tube feeding |
|
Output |
Taping / tube output |
|
Pressing method |
Servo motor + Cam |
|
Contact Force |
Force control accuracy ±10% (≥10N) |
|
Machine Reliability |
MTBA>60min MTTA<3min MTBF>168H |
|
Air Supply |
Pressure: 0.4–0.7 Mpa ; Vacuum: > –65 KPa |
|
Power Supply |
AC220V/380V 50/60Hz |
|
Laser Marking Specifications |
• 10 W fiber laser (optional 20 W UV laser) |
|
• Marking area: 110 mm × 110 mm / 70 mm × 70 mm |
|
|
• Marking speed: 7000 mm/s |
|
|
• Minimum character size: 0.5 / 0.3 mm |
|
|
• Output power: 0-10W/20W optional |
|
|
Vision Specifications |
Camera and Resolution: 1.6 million CCD camera, resolution H1440 x V1080 pixels; |
|
Accuracy: ≤0.015mm/pixel; Cycle Time: <50ms |
|
|
Bus Program |
High precision and fast speed, with all servo parameter settings open, facilitating equipment debugging and monitoring; Storage of MTBA original data records, equipment operation logs, machine fault alarm codes and information, etc. |
|
Work Stations |
48 Work Stations |
|
Key Component |
Imported DDR Motor |
