SKD308T tri-temperature pick and place test handler

4dhcpmingchen

Location: Home -> Products -> Translation series -> SKD308T -> SKD308T tri-temperature pick and place test handler

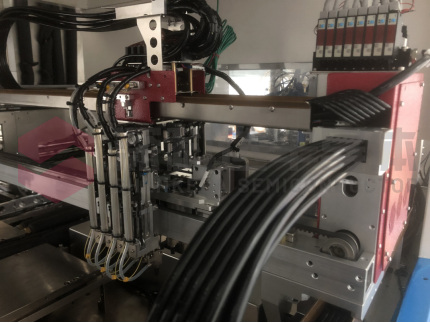

● Taking and discharging mechanical arm: Y-axis is double-sided drive mode; Z-axis motor independent control, equipped with 2X4 taking and discharging nozzle, X Pitch variable. The nozzle module adopts the span beam design, the center of gravity is stable, not easy to deform.

● Pressure measuring module: equipped with precision floating head and socket stack sensor, automatic calculation of pressure measurement, up to support 120 kgf.

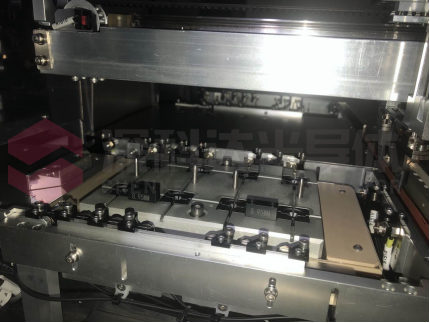

● Shuttle module: XY two directions are equipped with sensors, accurately detect whether the shuttle car is stacked or not flat, protect materials; The unloading shuttle car has the function of return temperature heating.

● Temperature control system: Test TJ: ±2℃; Preheating tray/Shuttle: ±3℃; TC: ±1℃; 200W@ -55℃/300W@ -40℃/850W @ 25℃/1150W@ 85~150℃ / 200℃(Optional).

● Plate module: feed plate is equipped with motor screw, it is more convenient to adjust when using different thickness plate./span>

● Automatic cleaning function: configure the cleaning plate assembly, the device automatically cleans the probe after the number of tests reaches the set value.

● Changing tray pickup arms: clamping claw mode, stable and reliable, with power failure automatic pull-up function.

● Front and rear configuration display touch screen and key panel, support to connect a variety of brand testing machines.

Contact Information：+86 13537507730

Scan to add WeChat

[View Original] [BACK]

SKD308T tri-temperature pick and place test handler

SKD308T tri-temperature pick and place test handler

The SKD308T tri-temperature pick and place test handler is suitable for DFN, QFN, LQFP, LGA, BGA, CSP, SOP, MSOP and other product specifications in 2X2-110X110 low temperature/normal temperature/high temperature test and classification requirements. To bring high quality product output to customers.

● Pressure measuring module: equipped with precision floating head and socket stack sensor, automatic calculation of pressure measurement, up to support 120 kgf.

● Temperature control system: Test TJ: ±2℃; Preheating tray/Shuttle: ±3℃; TC: ±1℃; 200W@ -55℃/300W@ -40℃/850W @ 25℃/1150W@ 85~150℃ / 200℃(Optional).

● Plate module: feed plate is equipped with motor screw, it is more convenient to adjust when using different thickness plate.

● Automatic cleaning function: configure the cleaning plate assembly, the device automatically cleans the probe after the number of tests reaches the set value.

● Changing tray pickup arms: clamping claw mode, stable and reliable, with power failure automatic pull-up function.

● Front and rear configuration display touch screen and key panel, support to connect a variety of brand testing machines

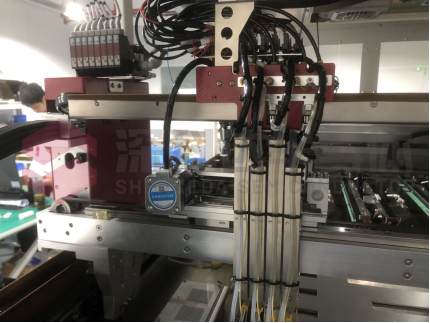

Bilateral drive structure: bilateral double slider synchronous belt drive structure, high precision, fast speed, long life.	Z-axis motor independent control, 2X4 mode, suction nozzle XPitch variable. Adopts the cross-beam mode design, the center of gravity is stable, the structure is stable and not easy to deform.	The shuttle is equipped with XY two direction sensors, and the shuttle car has the function of return temperature heating.
