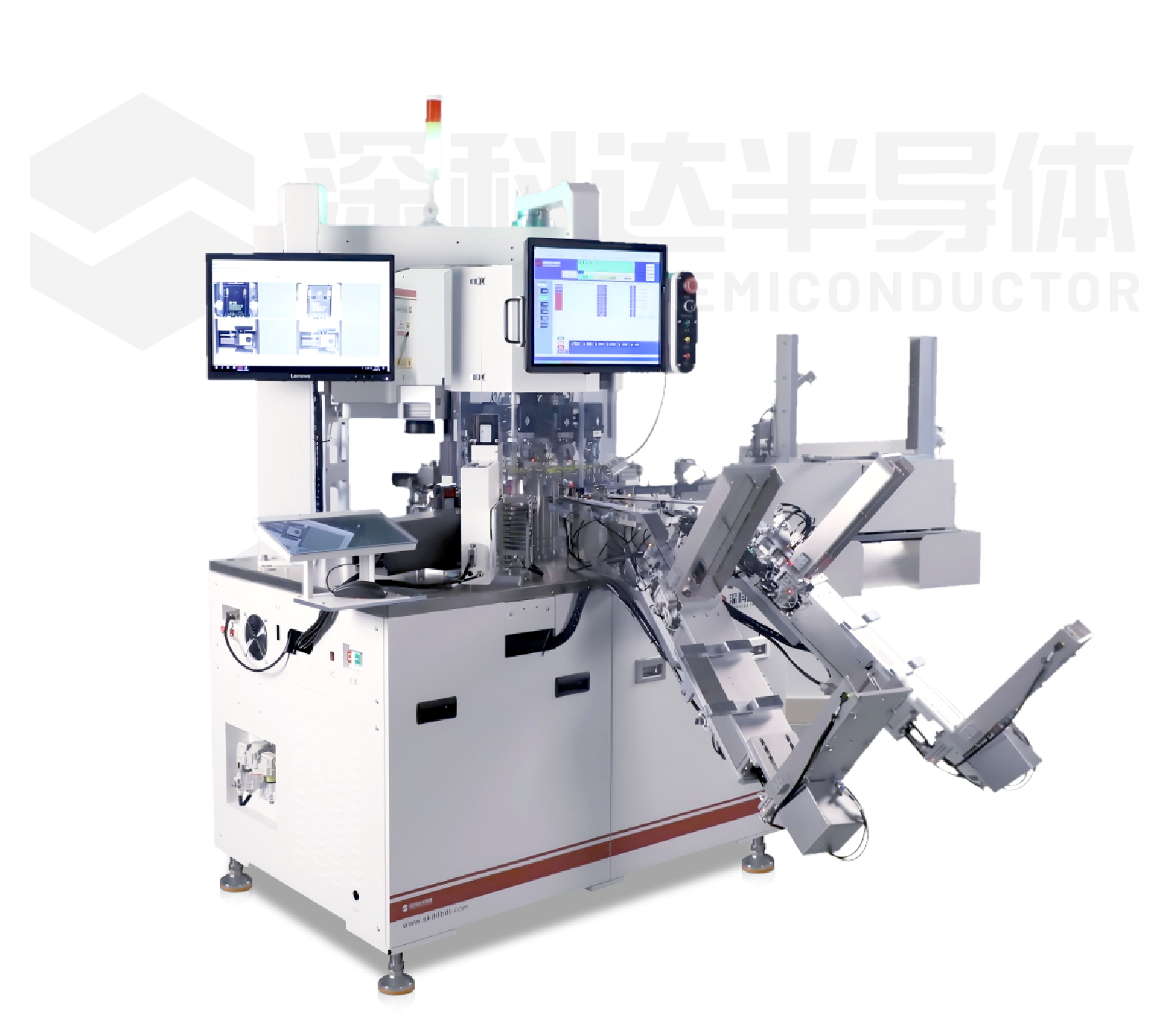

SKD936 turret test handler for more functional sorting needs, with 36 stations, flexible choice of feeding methods, support for a variety of ways of discharging, flexible with, to meet the needs of customers to have more workstation combinations; at the same time taking into account the requirements of the larger package size product testing and sorting (TO220/263/247, TO251, TOLL6R, LFPAK, PPAK8X8, XJ836, etc.).
● Mark inspection vision (2D mark inspection) recognizes and recodes marks, broken and redundant mark strokes, and marks that are outside of the plastic seal.
● 3D5S can detect product size and integrity; it can also detect pin length, standoff height, offsets, pin width and pin spacing.
● In pocket vision (in tape) detects defective products (defects visible to the naked eye) such as broken, contaminated and cracked plastic seals.
● Product transfer: main turret has 36 vacuum pickheads.
● Pickhead feature shielding and automatic height correction functions.
● Can be connected to a variety of brands of tester, software independent property rights, the use of key switches, standard keyboard for operation and data input, with workstation interlock function.
● Product orientation rotation station: make positioning rotation direction according to material direction.
● Maximum of 12 elastic test stations(compression/clamping), ensuring high testing accuracy.
● Packaging: TO220, idle UPH ≥11k (no testing or testing and marking time ≤120ms).
Contact Information：+86 13537507730
Scan to add WeChat
SKD936H high temperature turret test handler is applicable for discrete devices, IC devices and other products with high-temperature testing needs, adding high-temperature testing capability on the basis of the original room-temperature performance to ensure stable performance. It is suitable for normal and high temperature test sorting and classification of PDFN/DFN/ MSOP/SOT/SOP/SOD/TO/SMA/B/C and other components.
● Test components: 1-4 stations of high temperature(optional)+room temperature, heating temperature ≤180°(high temperature test comes with insulation design).
● Temperature control accuracy: heating temperature ≤180°, temperature control accuracy of ±3℃, PDFN5*6 as an example can be pr+eheated at the same time 96 pieces of material.
● High temperature auxiliary tower mechanism: the high temperature test is directly conducted on the high-temperature auxiliary tower, ensuring precise temperature control. At the same time, the inlet and outlet are equipped with anti-collision sensing devices;
● Cooling auxiliary disc mechanism: utilizing vortex tubes for cooling, it takes only 30s to reduce the temperature from 125°C to 28°C;.
● Automatic feeding(bowl in): bowl in, loading speed is fast and stable.
● Main turret: the main turret is equipped with 36 pickheads driven by DDR motor, which can accurately send the product to the center of each station through the adsorption of the pickhead.
● Orientation aligner: accurate positioning and commutation of the product, positioning tolerance ≤0.005mm, directional accuracy up to 0.1 degrees.
● Marking: the marking station can complete laser marking, vacuuming, marking vision inspection and other functions, greatly speeding up the marking speed.
● Tape out: in addition to automatic taping, it also has an automatic replacement function and sealing vision inspection.
● Vision inspection function after sealing(optional).
Contact Information：+86 13537507730
Scan to add WeChat
SKD936PLUS turret test handler for multi-functional test sorting needs, to meet the choice of more stations, flexible material supply with the way to support a variety of flexible configuration of the way out of the material, but also to meet the customer's more categorized and the capacity needs. at the same time take into account the larger size of the package products(TO220/263/247, TO251), the right-angle clamp test products such as TOLL6R, LFPAK, PPAK8X8, XJ836, TOLL6R, LFPAK, PPAK8X8, XJ836 and other right-angle clamping products).
● Mark inspection vision (2D mark inspection) recognizes and recodes marks, broken and redundant mark strokes, and marks that are outside of the plastic seal.
● 3D5S can detect product size and integrity; it can also detect pin length, standoff height, offsets, pin width and pin spacing.
● In pocket vision (in tape) detects defective products (defects visible to the naked eye) such as broken, contaminated and cracked plastic seals.
● Product transfer: main turret has 36 vacuum pickheads. Sub-turret with clamping mechanism 20 pcs;
● Pickhead feature shielding and automatic height correction functions;
● Can be connected to a variety of brands of tester, software independent property rights, the use of key switches, standard keyboard for operation and data input, with workstation interlock function.
● Orientation aligner: accurate positioning and commutation of the product, positioning tolerance ≤0.005mm, directional accuracy up to 0.1 degrees;
● No. of testing stations: up to 8 stations for elastic clamping with high testing accuracy.
● Packaging: TO220, idle UPH ≥11k(no testing or testing and marking time ≤120ms).
Contact Information：+86 13537507730
Scan to add WeChat
SKD936T turret test handler for discrete devices, IC devices and other Tray tray in and out of the material, appearance detection, braid, with high-speed test marking braid capability, using high-precision DDR. Integration of marking system and imaging system to bring high quality product output to customers.
● Can support Tray to Reel, Bowl to Tray, Tray BIN and other feeding and unloading methods and BIN methods;
● Low Tray plate of transplanting: automatically in plate, positioning soft smooth, mobile location of high precision products;
● Low main wheel: the main wheel is equipped with servo motor drive the suction nozzle of 36, can you have your product to each station by adsorption of suction nozzle precise center;
● Low conductivity is/steering device: precision of product positioning and the reversing, positioning error is 0.005 mm, direction accuracy of 0.1 degrees;
● Low marking plate of institutions: marking plate can finish the laser marking, vacuuming, marking the function such as visual inspection, greatly accelerated the hit target speed;
● Low braid components: in addition to simple automatic braid, also added on the function of automatic filling material;
● Low sealing after imaging function (optional).
