SKD831 gravity test handler: an automatic Handler designed for packaging and testing of IPM series products. The Handler adopts oblique back mode and integrates insulation test, electrical performance test, laser marking, brush dust removal and visual inspection.
● Feed mode: material tube stack and feed, automatically switch material tube.
● Test station:1 insulation test station(optional)+1 AC/DC test station.
● Marking station : optional.
● 3D visual station : optional.
● Sub-material level: it is driven by motor, the position of sub-material tube can be set by red and white tube, which can effectively distinguish good products from bad ones./span>
● Discharge mode: material tube stack and put in, automatically switch material tube.
● Modular structure design, a small number of parts can be replaced to complete the equipment restructure according to the requirements of product in the later stage.
● With the unique equipment transformation mechanism, the matching transformation of the equipment can be completed by replacing a small number of parts according to the requirements of the test products in the later stage；
● PLPLC control system, friendly man-equipment interface, the interface can be real-time display in the production of each pipe product quantity, UPH, fault location, causes, treatment methods and other functions.
Contact Information：+86 13537507730
Scan to add WeChat

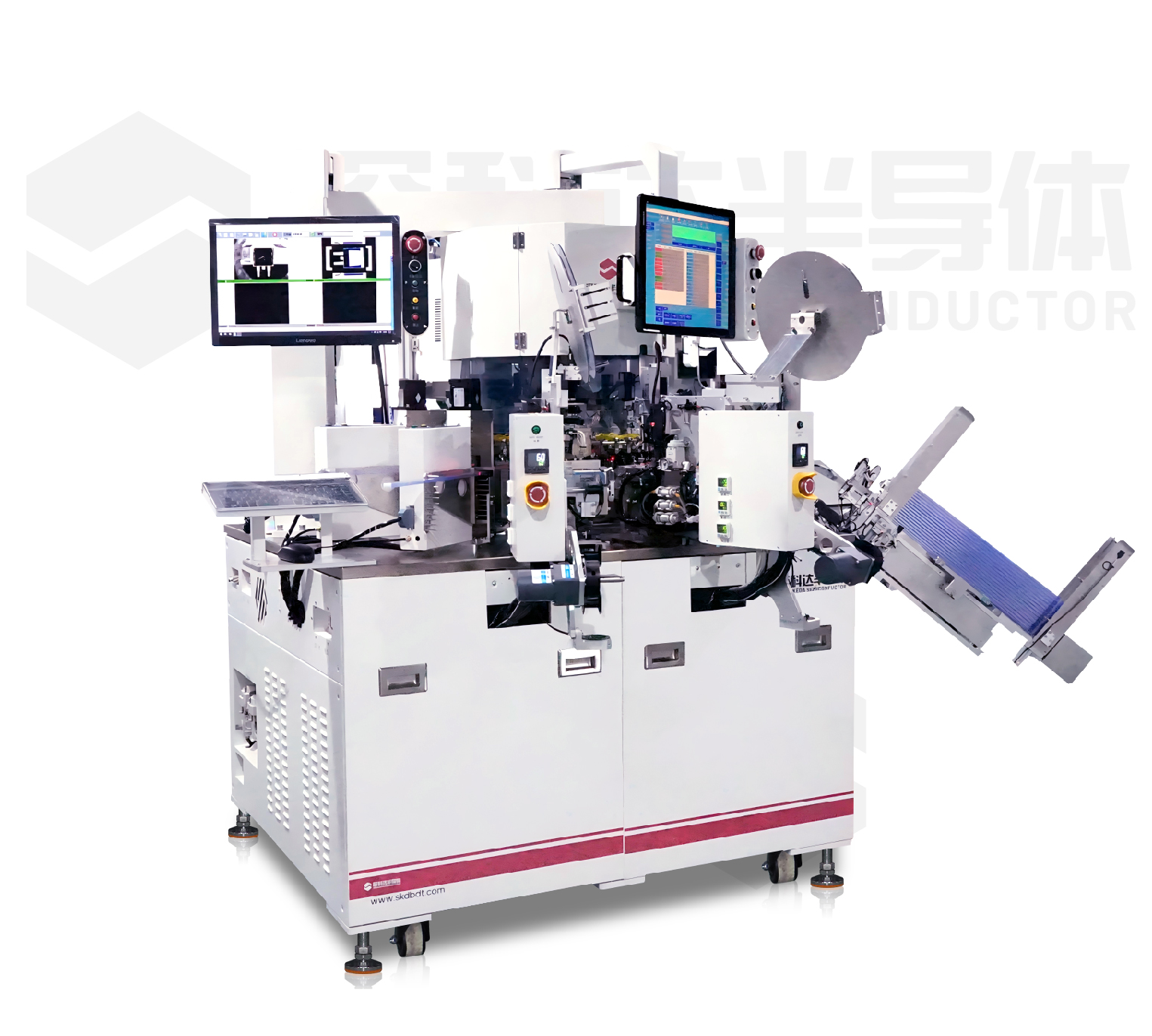

SKD936PLUS turret test handler for multi-functional test sorting needs, to meet the choice of more stations, flexible material supply with the way to support a variety of flexible configuration of the way out of the material, but also to meet the customer's more categorized and the capacity needs. at the same time take into account the larger size of the package products(TO220/263/247, TO251), the right-angle clamp test products such as TOLL6R, LFPAK, PPAK8X8, XJ836, TOLL6R, LFPAK, PPAK8X8, XJ836 and other right-angle clamping products).
● Mark inspection vision (2D mark inspection) recognizes and recodes marks, broken and redundant mark strokes, and marks that are outside of the plastic seal.
● 3D5S can detect product size and integrity; it can also detect pin length, standoff height, offsets, pin width and pin spacing.
● In pocket vision (in tape) detects defective products (defects visible to the naked eye) such as broken, contaminated and cracked plastic seals.
● Product transfer: main turret has 36 vacuum pickheads. Sub-turret with clamping mechanism 20 pcs;
● Pickhead feature shielding and automatic height correction functions;
● Can be connected to a variety of brands of tester, software independent property rights, the use of key switches, standard keyboard for operation and data input, with workstation interlock function.
● Orientation aligner: accurate positioning and commutation of the product, positioning tolerance ≤0.005mm, directional accuracy up to 0.1 degrees;
● No. of testing stations: up to 8 stations for elastic clamping with high testing accuracy.
● Packaging: TO220, idle UPH ≥11k(no testing or testing and marking time ≤120ms).
Contact Information：+86 13537507730
Scan to add WeChat
SKD860H test handler is a fully automatic sorting machine designed for IPM DIP series product package testing. The separator is equipped with multiple test stations in parallel with high temperature, which integrates high temperature heating, high temperature testing, product flipping, automatic BIN separation and function.
● With DBC high temperature test mode nitrogen protection function;
● Preheating device: the use of air heater heating, heating temperature ≤ 175°, high efficiency double track preheating mechanism (accuracy ±3℃), with rapid cooling performance;
● High temperature test component: 2 stations high temperature test, heating temperature ≤ 175°, the test station is equipped with a separate device to improve the heating efficiency (accuracy ±3 ° C);
● Cooling device: the feeding track has the air cooling function;
● Turning station: the product test is completed with the turning function to ensure the direction of the product into the pipe;
● Parting position: driven by servo motor and designed by double parting shuttle mechanism, the mechanism is light, stable, accurate, fast and efficient;
● Feeding mode: 1 automatic material tube receiving mechanism, 5 NG manual tube mechanism, effectively distinguish good products from bad products (automatic tube slot can put 18 material tubes);
● PLC control system, friendly man-machine interface, the interface can display real-time production of each material tube product quantity, UPH, fault location, cause, treatment methods and other functions.
Contact Information：+86 13537507730
Scan to add WeChat
SKD610 is a tray-to-reel converter with AOI inspection, featuring tray feeding and automatic variable-pitch nozzle pickup for taping. It includes a multi-station imaging system to ensure high yield in taping. It can accommodate various package sizes such as DFN, QFN, LGA, CSP, SOP, MSOP, TSSOP(3x3 to 15x15mm).
● Mark Inspection Vision (two-dimensional mark inspection) can recognize, duplicate code imprinting, imprinting strokes broken and extra strokes, imprints beyond the plastic seal.
● The product direction judgment station can judge the materia’ s direction, lead deformation, character recognition, suction nozzle empty material.
● In Pocket Vision can inspect plastic seal body breakage, contamination, cracks and other bad products (visible to the naked eye).
● Visual inspection of the carrier’ s bottom to inspect the damage, depression and bad creases at the bottom of the carrier.
● Product transfer: 7-station variable distance fetching manipulator.
● Taping: It is adopted with open carrier track , which can meet the carrier’S taping function of different specifications.
