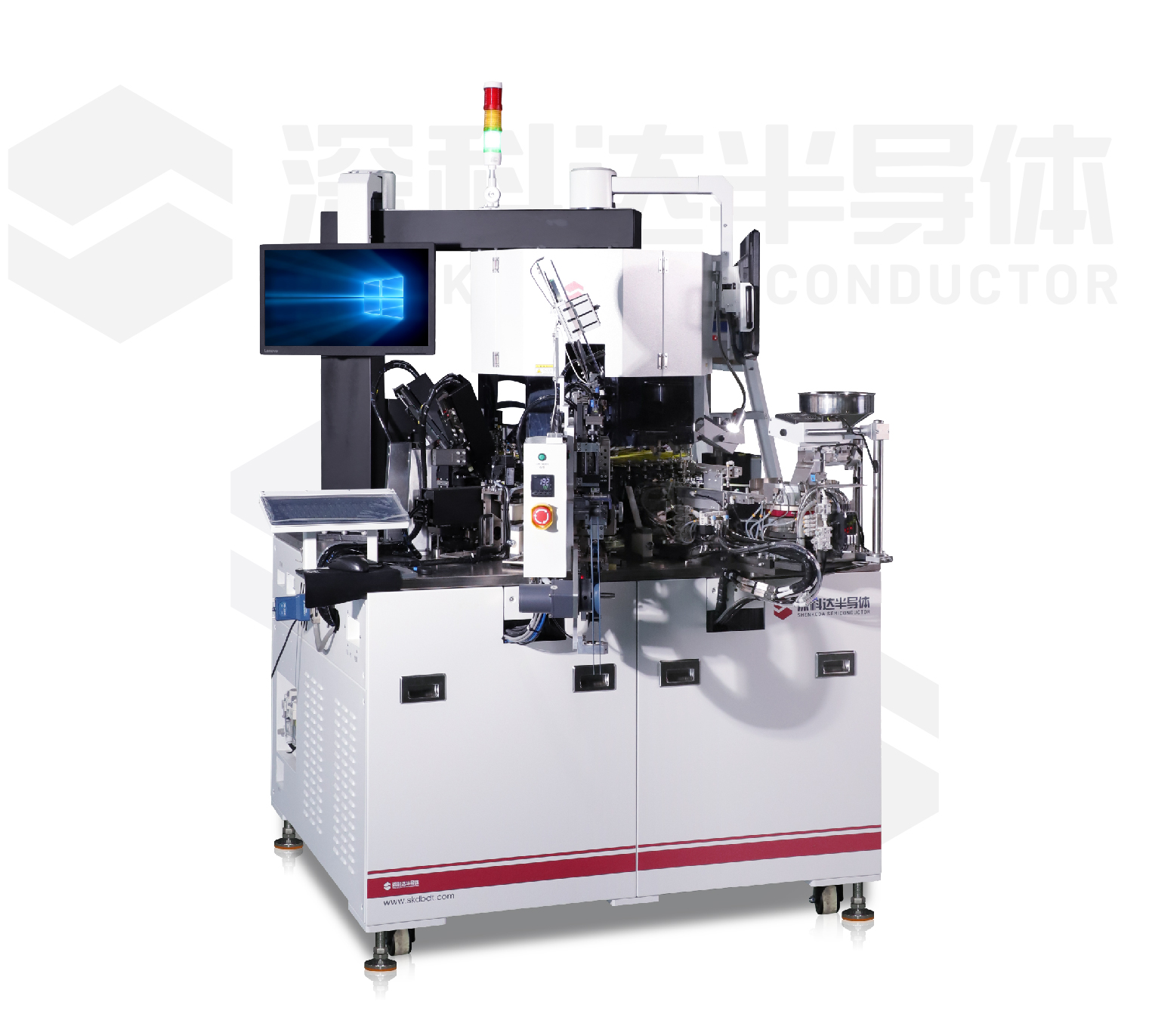

SKD936/SKD936-C turret test handler for more functional sorting needs, with 36 stations, flexible choice of feeding methods, support for a variety of ways of discharging, flexible with, to meet the needs of customers to have more workstation combinations; at the same time taking into account the requirements of the larger package size product testing and sorting (TO220/263/247, TO251, TOLL6R, LFPAK, PPAK8X8, XJ836, etc.).

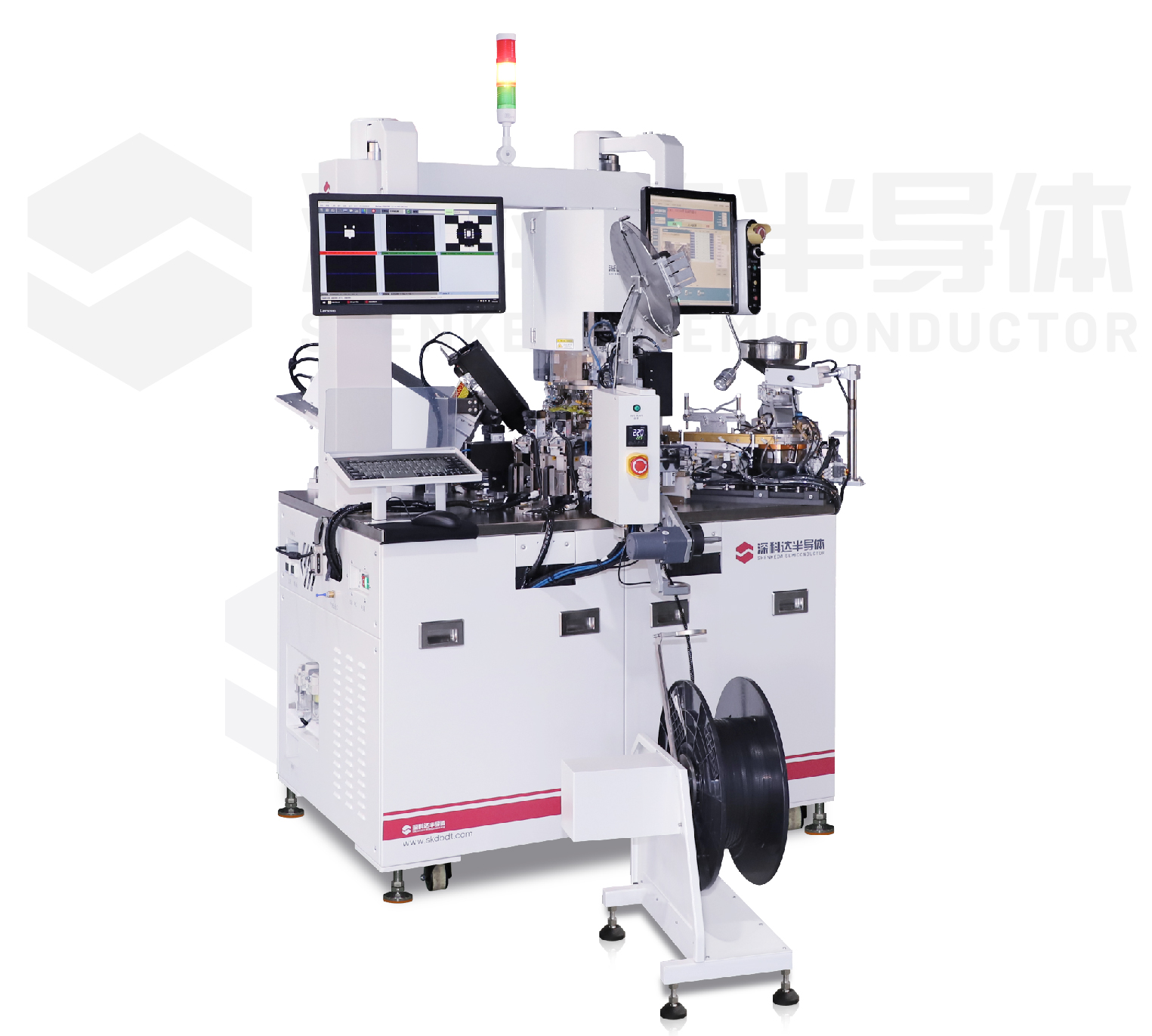

SKD950 turret sorter is used for tape weaving of discrete devices and IC devices, with high-speed testing, marking, and tape weaving capabilities. It uses DDR motors imported from Japan to ensure stable performance and high UPH output. Integrate the marking system and imaging system to bring high-quality product output to customers
● It can support 8-station parallel testing, and lift the machine UPH for products with long testing time
● Suction nozzle has shielding function and automatic height correction function
● Automatic feeding (vibrating disc device): vibrating disc feeding, fast and stable feeding speed
● Main rotary table: The main rotary table is equipped with 20 suction nozzles driven by servo motors, which can accurately deliver products to each work center through the adsorption of suction nozzles
● Guiding/steering device: accurately positioning and reversing the product, with a positioning error of 0.005mm and a directional accuracy of 0.1 degrees
● Marking disc mechanism: The marking disc can complete functions such as laser marking, dust suction, and visual detection of marking, greatly accelerating the speed of marking
● Tape weaving component: In addition to simple automatic tape weaving, it also has an automatic feeding function
● Image inspection function after sealing (optional)
SKD950 turret sorter is used for tape weaving of discrete devices and IC devices, with high-speed testing, marking, and tape weaving capabilities. It uses DDR motors imported from Japan to ensure stable performance and high UPH output. Integrate the marking system and imaging system to bring high-quality product output to customers
● It can support 8-station parallel testing, and lift the machine UPH for products with long testing time
● Suction nozzle has shielding function and automatic height correction function
● Automatic feeding (vibrating disc device): vibrating disc feeding, fast and stable feeding speed
● Main rotary table: The main rotary table is equipped with 20 suction nozzles driven by servo motors, which can accurately deliver products to each work center through the adsorption of suction nozzles
● Guiding/steering device: accurately positioning and reversing the product, with a positioning error of 0.005mm and a directional accuracy of 0.1 degrees
● Marking disc mechanism: The marking disc can complete functions such as laser marking, dust suction, and visual detection of marking, greatly accelerating the speed of marking
● Tape weaving component: In addition to simple automatic tape weaving, it also has an automatic feeding function
● Image inspection function after sealing (optional)
Scan to add WeChat
Tel: 13537507730

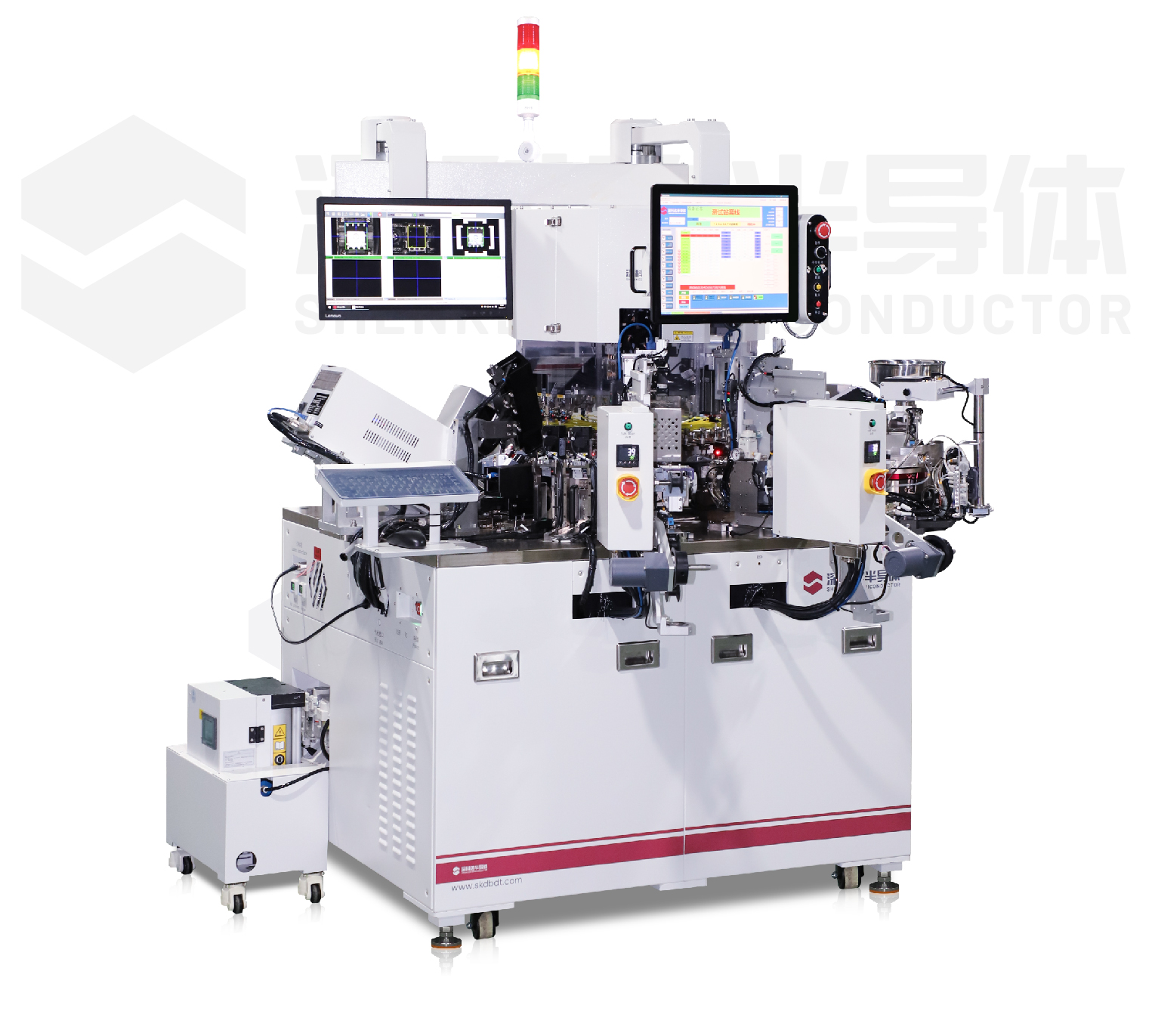

SKD980 turret test handler is applicable for multi-function testing and sorting ,it can meets the selection needs of more stations, flexible feeding mode , support flexible configuration of various discharge modes, can also meet more classification types and capacity needs of customers,and support the testing and sorting requirements of products with larger package size at the same time(TO220,TO263,TO252, etc.).
Mark Inspection Vision (2D Mark Inspection) recognizes and recodes marks, broken and redundant mark strokes, and marks that are outside of the plastic seal.
3D5S can detect product size and integrity; it can also detect pin length, standoff height, offsets, pin width and pin spacing.
In Pocket Vision (In Tape) detects defective products (defects visible to the naked eye) such as broken, contaminated and cracked plastic seals.
Product transfer: main turret has 24 vacuum pickheads.
Scan to add WeChat
Tel: 13537507730

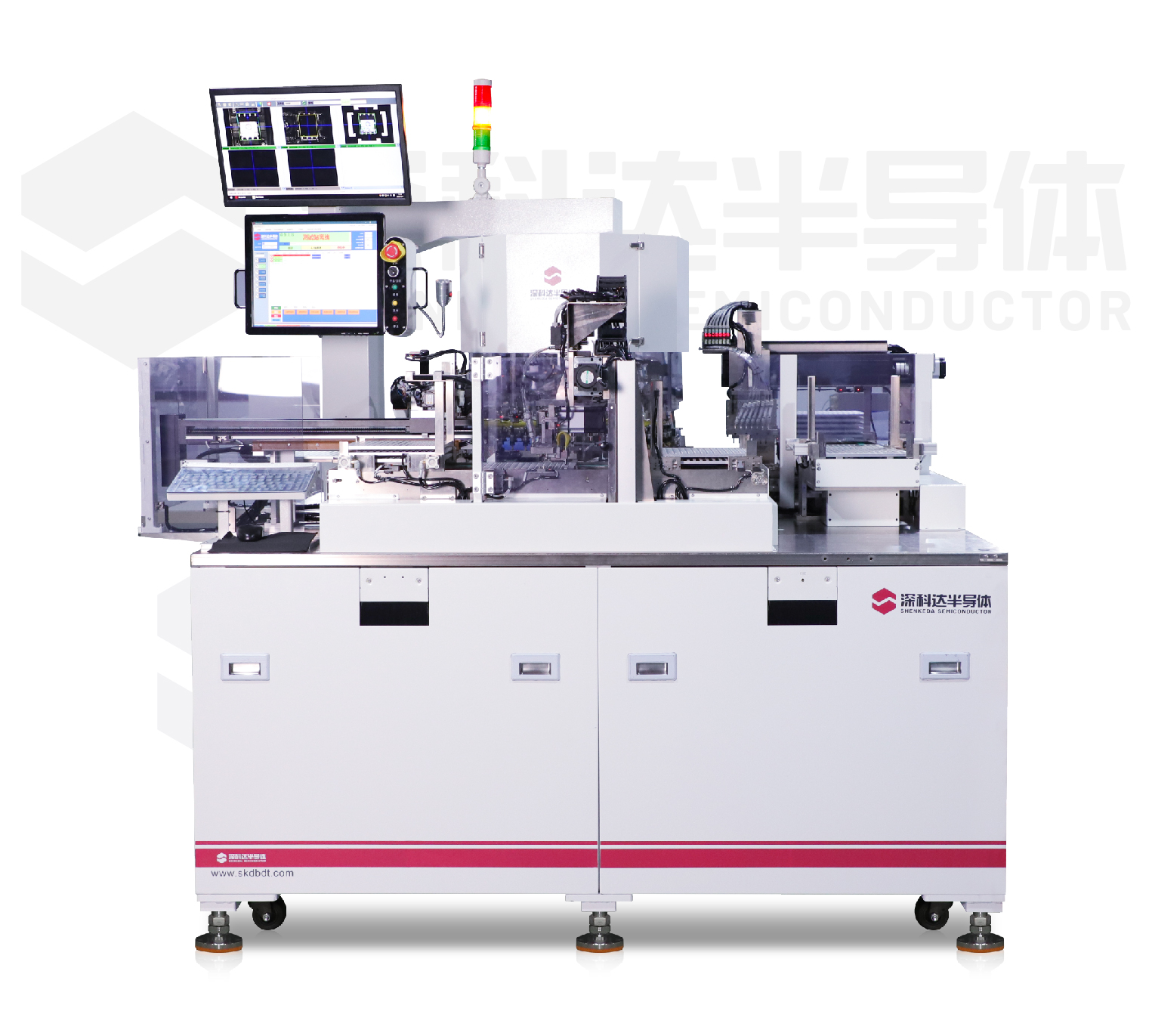

The SKD308H translational test sorter supports multifunctional test sorting, which can meet the complex and diverse testing needs of customers. Suitable for MSOP/QFN/QFP/SIP/LGA/BGA/CSP/SIM/IPM/IGBT/Memory (3X3-55X55mm) room and high temperature testing, sorting, and integrating imaging systems to bring high-quality product output to customers
Automatic loading and unloading mechanism: one automatic loading position, three automatic receiving positions, three manual receiving positions, one automatic receiving empty tray position, and one automatic providing empty tray position
Number of feeding and unloading nozzles: 8, each nozzle is independently controlled by the Z-axis motor, and the Y-axis direction is a bilateral drive mode
Feeding and discharging shuttle: the preheating temperature plate of the feeding shuttle is 50~130 ℃ ± 3 ℃, and it has the detection function of 1X2, 2x2, 1X4, and 2X4 sensors
Disc changing manipulator: 1, with automatic pull-up function in case of power failure
Pressure measuring mechanism: Mode 1: 1X2/1X4, X=40 ± 0.01mm Mode 2: 2X2/2X4, X=80 ± 0.01mm, Y=60 ± 0.01mm The pressure can be automatically calculated based on the number of IC pins/balls
Pressure measuring area: with image detection function to detect whether there is stacking, to prevent test misjudgment
It can connect multiple brands of testing machines, with proprietary software. It uses key switches and standard keyboards for operation and data input
The SKD308H translational test sorter supports multifunctional test sorting, which can meet the complex and diverse testing needs of customers. Suitable for MSOP/QFN/QFP/SIP/LGA/BGA/CSP/SIM/IPM/IGBT/Memory (3X3-55X55mm) room and high temperature testing, sorting, and integrating imaging systems to bring high-quality product output to customers
Automatic loading and unloading mechanism: one automatic loading position, three automatic receiving positions, three manual receiving positions, one automatic receiving empty tray position, and one automatic providing empty tray position
Number of feeding and unloading nozzles: 8, each nozzle is independently controlled by the Z-axis motor, and the Y-axis direction is a bilateral drive mode
Feeding and discharging shuttle: the preheating temperature plate of the feeding shuttle is 50~130 ℃ ± 3 ℃, and it has the detection function of 1X2, 2x2, 1X4, and 2X4 sensors
Disc changing manipulator: 1, with automatic pull-up function in case of power failure
Pressure measuring mechanism: Mode 1: 1X2/1X4, X=40 ± 0.01mm Mode 2: 2X2/2X4, X=80 ± 0.01mm, Y=60 ± 0.01mm The pressure can be automatically calculated based on the number of IC pins/balls
Pressure measuring area: with image detection function to detect whether there is stacking, to prevent test misjudgment
It can connect multiple brands of testing machines, with proprietary software. It uses key switches and standard keyboards for operation and data input
